AQUA Drill EX FLAT Oil-Hole

Add Oil Hole FLAT Drill for deep hole

• Realize 5D drilling with high efficiency.

Wide Application of material

• Applicable from carbon steel, alloy steel and cast iron to stainless steel.

Well balanced flute geometry realizing both rigidity and excellent evacuation

• Improve chip separation and evacuation.

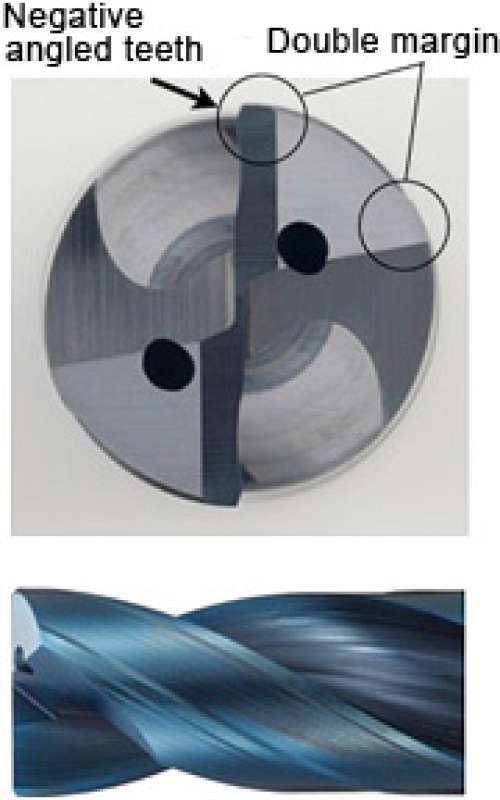

• Inter-mediate double margin realizes highly accurate boring and controls oversize.
  AQDEXZOH3D Ø3 to Ø16
  AQDEXZOH5D Ø3 to Ø16

Features

Hole enlargement is reduced and a wide range of work materials are supported

• Applicable from carbon steel, alloy steel and cast iron to stainless steel.
• Amount of oversize is reduced due to a double margin and the shape of the negative rake blade tip.

AQUA EX Coating

Improved resistance to oxidation, heat and wear

Deep hole drilling with AQUA FLAT Series

5D FLAT Oil Hole drilling on slope surface

Suitable for cross hole drilling in a deep work position

Excellent for burr control or chip disposal in internal cooling.
